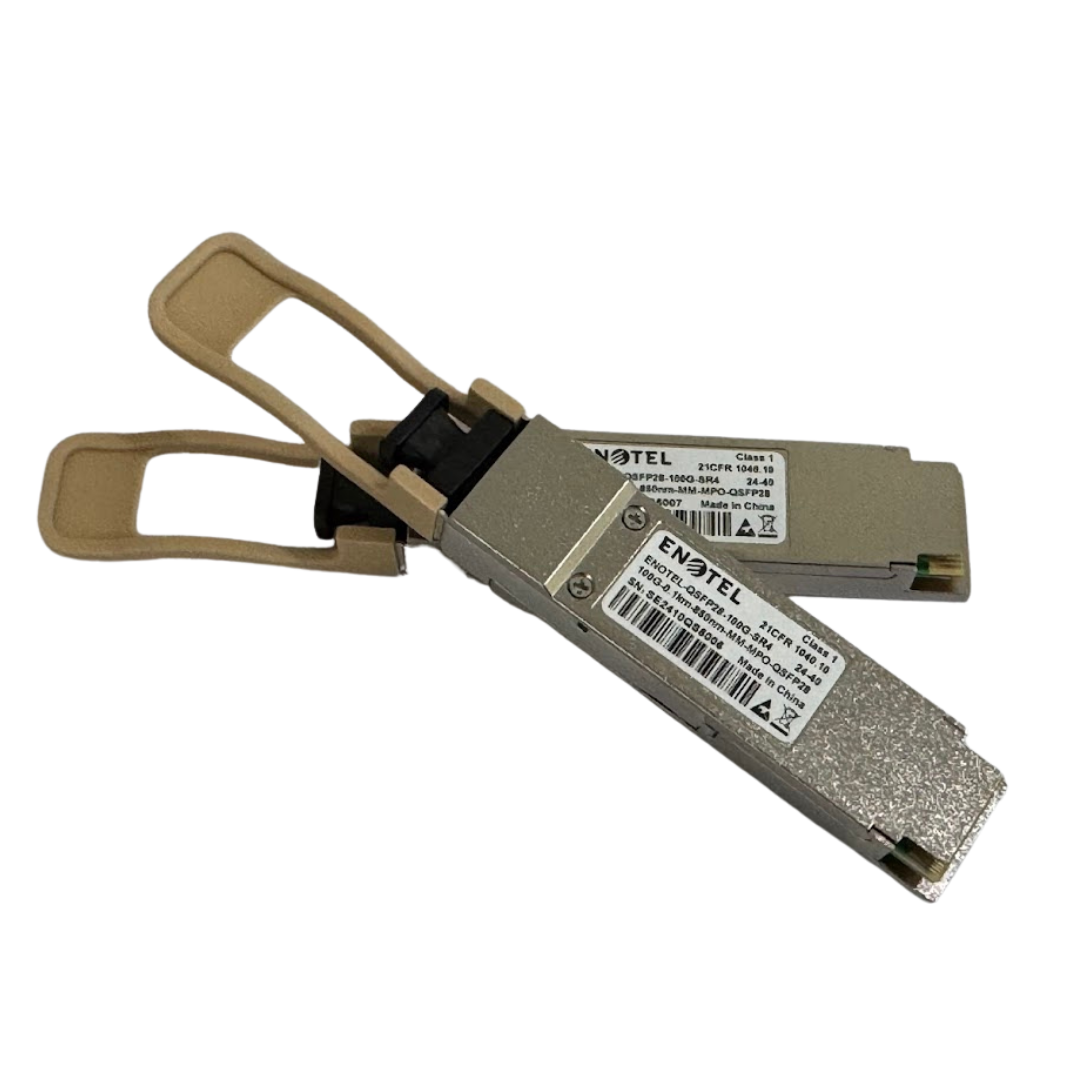

| Part Number | QSFP28-100G-SR4 | Vendor Name | Enotel |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps(4x 25.78Gbps |
| Wavelength | 850nm | MaxCable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-12 | Media | MMF |
| TransmitterType | 850nm | Receiver Type | PIN |
| TX Power | 8.4-2.4dBm | Minimum Receiver Power | -10.3dBm |
| Powerbudget | 1.9dB | Receiver Overload | 2.4dBm |
| Typical Power Consumption | s2.5W | Extinction Ratio | >3dB |
| DDM/DOM | Supported | CommercialTemperature Range | 0 to 70℃(32 to 158°F) |
| CDR(Clock and Data Recovery) | TX&RX Built-in CDR | Inbuilt FEC | No |
| Protocols | IEEE 802.3bm,QSFP28 MSA,SFF-8665,SFF-8636, RoHS,CPRI,eCPRI |
Warranty | 2 years |
