Hardware Specification
|
Attributes |
Description |
|
Interface |
8*EPON Port, 4*10/100/1000M Base-T 4*1000M Base-X SFP/4*10GE SFP+ |
|
Exchange Capacity |
104Gbps |
|
Forwarding Rate |
77.376Mpps |
|
Memory & Storage |
Memory: 512MB; Storage: 32MB |
|
Management Port |
Console, MGMT, Type C |
|
PON |
Comply with IEEE 802.3ah EPON standard 20KM transmission distance 1:64 Max splitting ratio |
|
Fan |
Fixed fans (two fans) |
|
Power |
AC: 100~240V 40/60Hz; DC: 40V~60V |
|
Power Consumption |
≤50W |
|
Weight |
≤5kg |
|
Dimensions (W *H *D) |
440mm*44mm*260mm (not including mounting ears) |
|
Environment Temperature |
Working Temperature: -10°C~55°C Storage Temperature: -40°C~70°C |
|
Environment Humidity |
Relative Humidity: 5%~95% (non-condensing) |
Key Feature
Ø Maximum split ratio of 1:64, connecting up to 512 ONUs
Ø Rich Layer 2/3 switching features, flexible management methods
Ø Comply with IEEE 802.3ah EPON standard
Ø Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
Ø Support 16K MAC address
Ø Support RIP、OSPF、BGP、ISIS and IPV6
Ø Support ONU authentication, FEC, AES, DBA, Rogue ONU detection
Ø Support CLI, Telnet, WEB, SNMP v1/v2/v3, SSH2.0
Ø Support Power redundancy backup
Ø Support batch software upgrades on ONUs
Ø Flexibly compatible with any brand of ONTs
Purchase Info
|
Model Number |
Description |
|

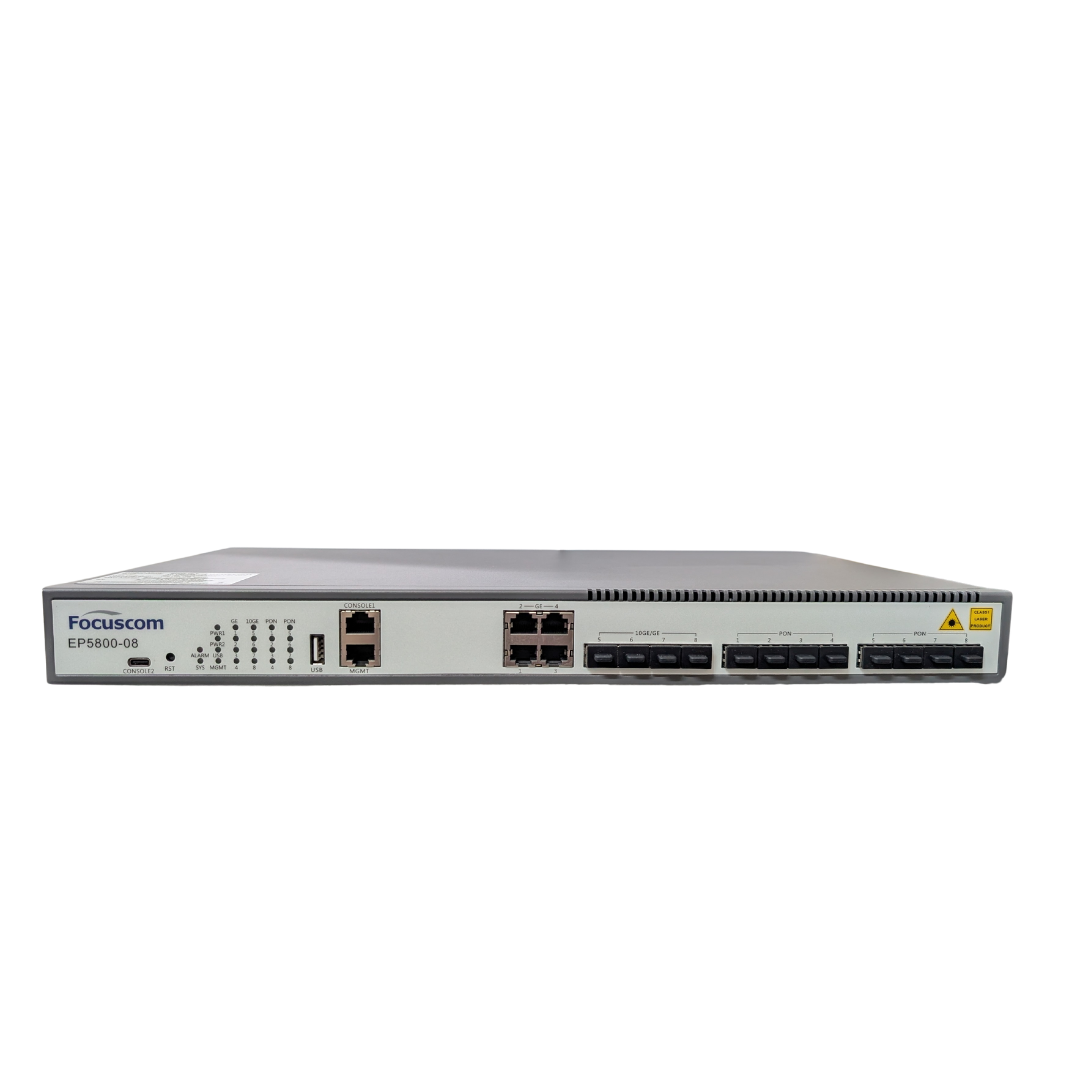

EP5800-08 |
8*EPON port+4GE RJ45+4*GE/10GE SFP uplink port |
|
EPON PON Transceiver (SFP-Transmit 1490nm/Receive 1310nm, 9dBm, SC interface-PX20+++) |
|
|
AC/DC optional dual power supply |
|
|
EU & US power plug optional |
