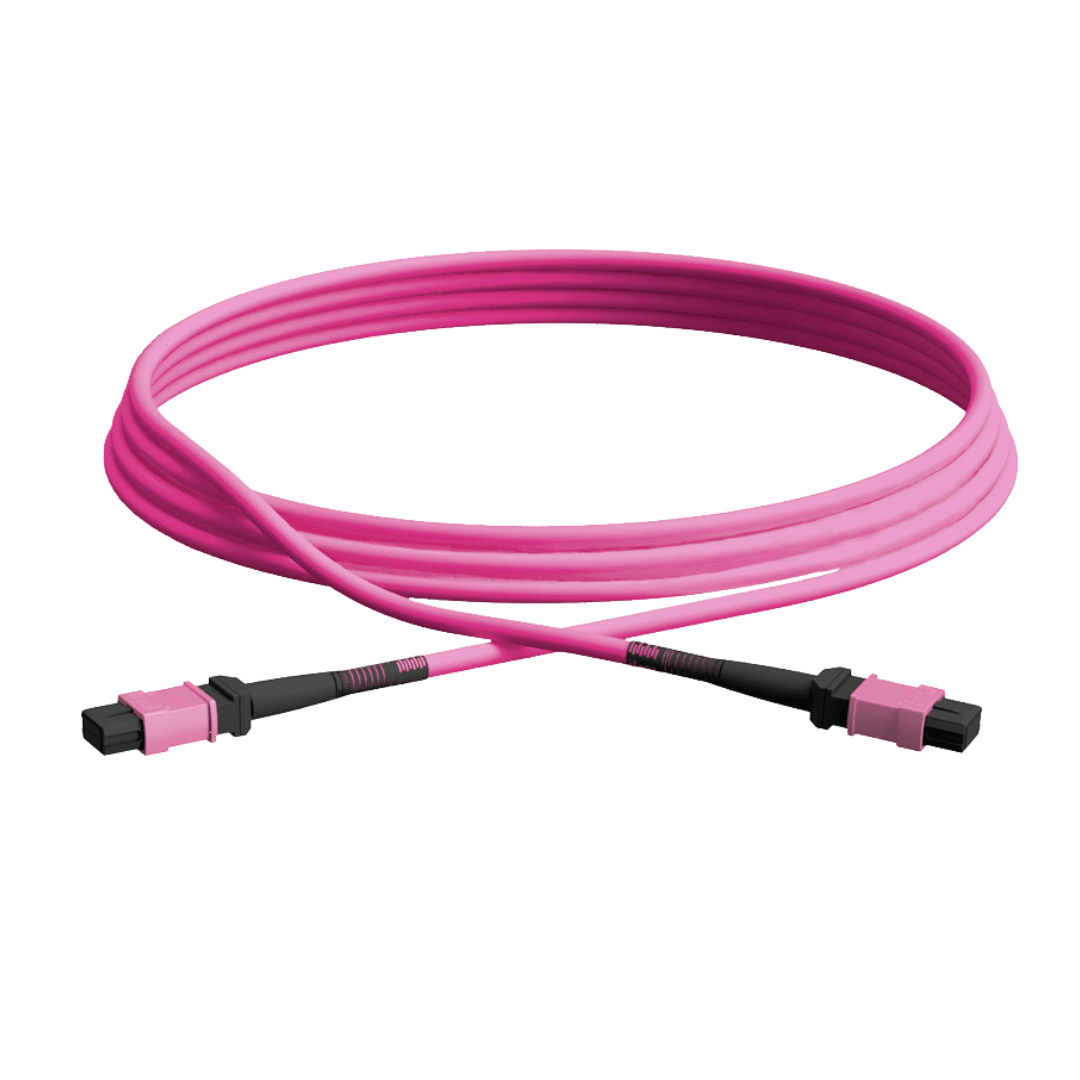

Key Technical Data
| Connector A: |
MPO Female (SENKO) |
|---|---|
| Connector B: |
MPO Female (SENKO) |
| Polarity: |
Type B |
| Fiber Type: |
OM4 50/125μm Multimode |
| Fiber count: |
12 |
| Polish Type: |
UPC to UPC |
| Jacket Diameter: |
3.0 mm |
| Jacket Type: |
LSZH |
| Wavelength: |
850/1310nm |
| Attenuation @ 850 nm: |
≤2.3 dB/km |
| Attenuation @ 1310 nm: |
≤0.6 dB/km |
| Attenuation @ 1550 nm: |
– |
| Insertion Loss MPO: |
0.75dB Max (0.35dB Typ.) |
| Return Loss MPO: |
≥20dB |
| Storage Temperature: |
-40°C to +85°C |
| Operating Temperature: |
-10°C to +70°C |
| Installation Tensile Load: |
66 N |
| Long Term Tensile Load: |
50 N |
| Minimum Bend Radius: |
7.5mm |
| Fiber Color: |
Violet/Magenta |
| Glass Fiber |
YOFC |
| Length: |
1 to 50 M |
